ECdrive
AutoSlide EI1 30 * Automatic wood sliding door system with fire resistance class El1 30 certification
- Fire resistant wooden leaf from De Coene Products
- Surface pre-painted, HPL or veneer
- Slim design with a cover height of just 100 mm for greater creative freedom
- With double roller carriage up to 140 kg leaf weight permitted
- Efficient installation thanks to pre-drilled tracks and elongated holes
- Integrated cable routings make cable laying easier
- Can be networked, and integrated into the building automation via open standard (BACnet)
- Independent error recognition and recording
- Freely configurable inputs and outputs for different functions
- Integrated battery for emergency opening and closing in the event of a power failure
- Self-cleaning roller carriage reduces maintenance effort and costs
- Service interface for easy maintenance
- Electrical locks are optionally available
Application Areas
- Single leaf fire resistant wood sliding door with GEZE ECdrive T2 sliding door drive

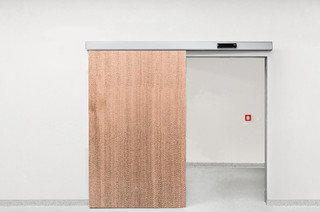

Installation situations in reference objects and videos
Sliding door solutions from GEZE, product video
ECdrive T2, Slimdrive and Powerdrive: Tailored, efficient and open to the demands of tomorrow.
AutoSlide EI1 30 sliding door system
AutoSlide EI1 30 for the Belgian market, developed by GEZE & De Coene Products © GEZE GmbH
Technical data
| AutoSlide EI1 30 | |
| For 1-leaf door systems | Yes |
| For 2-leaf door systems | No |
| For 4-leaf door systems | No |
| Height | 2345 mm |
| Depth | 1800 mm |
| Leaf weight (max.) 1-leaf | 140 kg |
| Opening width 1-leaf | 1700 mm - 2300 mm |
| Leaf thickness | 50 mm |
| Standard conformity | EN 13051-2:2010, EI1 30 fire resistance (Belgium) |
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
