E 212 24 V

Safety scissors no. 35 * For protection of bottom-hung leaves

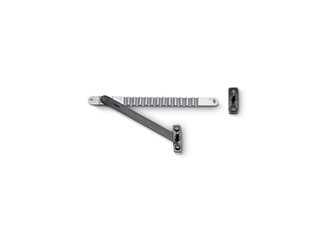

Safety scissors no. 35 Provides a permanent link between the leaf and the frame
  • Facilitate a fixed connection between the window frame and leaf
  • Can be used from a leaf height of 300 mm
  • Depending on the leaf height and the leaf weight an opening width up to 700 mm can be realised
  • Two safety scissors are needed per window leaf
Contact us

Application Areas

  • Designed for bottom-hung leaves
  • For use when fitting a chain drive to a bottom-hung window
  • Installation on wooden, PVC or metal windows
  • Leaf and frame installation

Variants & Accessories
